Iron oxide (Fe₂O₃, Fe₃O₄) is a versatile raw material—used in steelmaking, magnetic materials, and even pharmaceutical catalysts—but unlocking its full value requires precise calcination reduction. This process converts iron oxide into high-purity iron powder or reduced iron (Fe) by heating it with a reducing agent (e.g., coke, natural gas) at 800-1200°C. However, traditional operations struggle with three critical pain points: uneven grinding (leading to incomplete reduction), excess moisture (causing kiln clogs), and inconsistent temperature control (wasting energy). The solution lies in a synergistic system of ball mills, rotary dryers, and rotary kilns—three pieces of equipment that work in tandem to fix these issues, cut costs, and boost product quality.
The Core Challenge of Iron Oxide Calcination Reduction
Before optimizing with specialized equipment, a medium-sized iron powder plant in South Africa faced typical industry struggles:
Grinding inefficiency: Using a hammer mill to crush iron oxide ore resulted in uneven particle sizes (50-500μm). During calcination, large particles (over 200μm) failed to reduce fully, leaving 15% of Fe₂O₃ unreacted—wasting raw materials and lowering output.
Moisture-related downtime: Raw iron oxide ore contained 18-22% moisture. Feeding wet ore into the rotary kiln caused clumping, forcing the plant to shut down 2-3 times weekly for cleaning—losing 8+ hours of production each time.
High energy costs: The kiln operated at fluctuating temperatures (900-1300°C), burning 15% more natural gas than necessary. This pushed monthly energy bills to $45,000—30% of the plant’s total operating costs.
By integrating a wet ball mill, rotary dryer, and temperature-controlled rotary kiln, the plant transformed its process—turning inefficiencies into competitive advantages.
Step 1: Ball Mills – Uniform Grinding for Complete Reduction
The first critical step in iron oxide calcination is grinding the ore into a fine, consistent powder. A wet overflow ball mill (model: Φ1830×3000mm) solved the South African plant’s grinding problems, and here’s why it’s ideal for this 工艺:
Particle size control: The ball mill uses high-chrome steel balls (Φ50-80mm) to grind ore into a uniform 75-100μm slurry. This size ensures every iron oxide particle is exposed to the reducing agent during calcination—cutting unreacted Fe₂O₃ from 15% to 3%.
Wet grinding advantage: Mixing ore with water during grinding prevents dust and creates a slurry that’s easy to feed into the dryer. Unlike dry grinding, it also avoids overheating the ore (which can alter its chemical structure and hinder reduction).
Low maintenance: The mill’s rubber liner resists wear from abrasive iron oxide, lasting 8-10 months (vs. 4-6 months for steel liners). This reduced the plant’s liner replacement costs by $3,000 annually.
For the South African plant, the ball mill processed 25 tons of ore daily into a consistent slurry—laying the foundation for efficient drying and calcination.
Step 2: Rotary Dryers – Moisture Control to Prevent Kiln Clogs
Wet slurry from the ball mill (with 35-40% moisture) can’t go straight to the kiln—it needs drying to 8-10% moisture. A single-pass rotary dryer (model: Φ1500×10000mm) solved the plant’s moisture issues, with key features tailored to iron oxide:
Heat efficiency: The dryer uses waste heat from the rotary kiln’s exhaust (300-400°C) to dry the slurry. This eliminated the need for a separate fuel source, cutting the plant’s natural gas use by 12%.
Anti-stick design: Iron oxide slurry is prone to sticking to dryer walls, but the dryer’s angle-adjustable lifting plates tumble the material continuously—preventing clumps. The plant’s downtime for cleaning dropped from 8+ hours weekly to 1 hour monthly.
Moisture precision: A built-in moisture sensor monitors the output in real time, adjusting the dryer’s rotation speed (3-5 RPM) to keep moisture at 9% consistently. This eliminated the “too wet/too dry” swings that once ruined batches.
After adding the dryer, the plant’s ore feed to the kiln was steady and dry—no more unexpected shutdowns, and the kiln could run 24/7 without interruptions.
Step 3: Rotary Kilns – Temperature Control for Energy-Saving Reduction

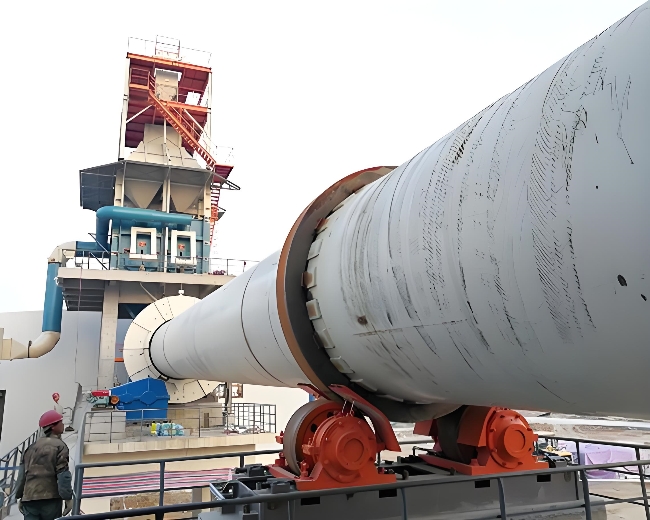

The final (and most critical) step is calcination reduction in a direct-fired rotary kiln (model: Φ2200×20000mm). This kiln addressed the plant’s energy waste and temperature inconsistency with:
Dual-zone heating: The kiln is divided into two temperature zones: a preheating zone (800-900°C) where moisture is fully removed, and a reduction zone (1050-1100°C) where Fe₂O₃ reacts with coke to form Fe. This targeted heating cut natural gas use by 18%, lowering monthly energy bills to $37,000.
Reducing agent mixing: A built-in screw feeder adds coke powder (the reducing agent) directly into the reduction zone, ensuring a 1:0.8 Fe₂O₃-to-coke ratio. This precise mixing eliminated excess coke waste—saving $2,500 monthly on raw materials.
Sealed design: The kiln’s airtight ends prevent air leakage (which would re-oxidize reduced iron). This boosted the final product’s purity from 92% Fe to 97% Fe—meeting the standards for high-grade steelmaking (the plant’s top customer demand).
Case Study: The South African Plant’s 6-Month Results
After integrating the three machines, the plant saw transformative improvements:
Production output: Monthly iron powder production rose from 350 tons to 520 tons (+48%), thanks to 24/7 kiln operation and complete reduction.
Cost savings: Combined energy, raw material, and maintenance savings totaled $12,000 monthly—equating to $144,000 annually.
Product quality: 97% pure iron powder sold for a $50/ton premium (vs. their old 92% pure product), increasing revenue by $26,000 monthly.
Downtime: Total monthly downtime dropped from 32 hours to 4 hours (-87%), letting the plant fulfill a new 100-ton/month order from a European steelmaker.
“The biggest surprise wasn’t the cost savings—it was the consistency,” says plant manager Pieter van der Merwe. “Before, every batch was different. Now, we can guarantee 97% purity every time—and that’s why our customers keep coming back.”
Why This Equipment Trio Is Non-Negotiable for Iron Oxide Processing
Iron oxide calcination reduction isn’t just about heating ore—it’s about precision at every step:
Ball mills ensure particles are small enough to react fully.
Dryers ensure moisture doesn’t ruin the kiln process.
Rotary kilns ensure temperature and reducing agent levels are perfect for efficient reduction.
Standalone machines can’t match this synergy. A plant using a hammer mill instead of a ball mill will always struggle with incomplete reduction; a plant skipping the dryer will face constant kiln clogs; a plant with a basic kiln will waste energy and produce low-purity iron.
For businesses looking to enter or scale in iron oxide processing—whether for steel, magnets, or catalysts—investing in this equipment trio isn’t an expense. It’s a way to secure consistent quality, lower costs, and win long-term customers in a competitive market.
If you’re unsure how to size these machines for your production capacity (e.g., 50 tons/day vs. 100 tons/day) or need help optimizing for a specific iron oxide type (e.g., hematite vs. magnetite), reach out for a free process audit. Our team will tailor a solution that fits your raw materials, output goals, and budget—no guesswork required.
