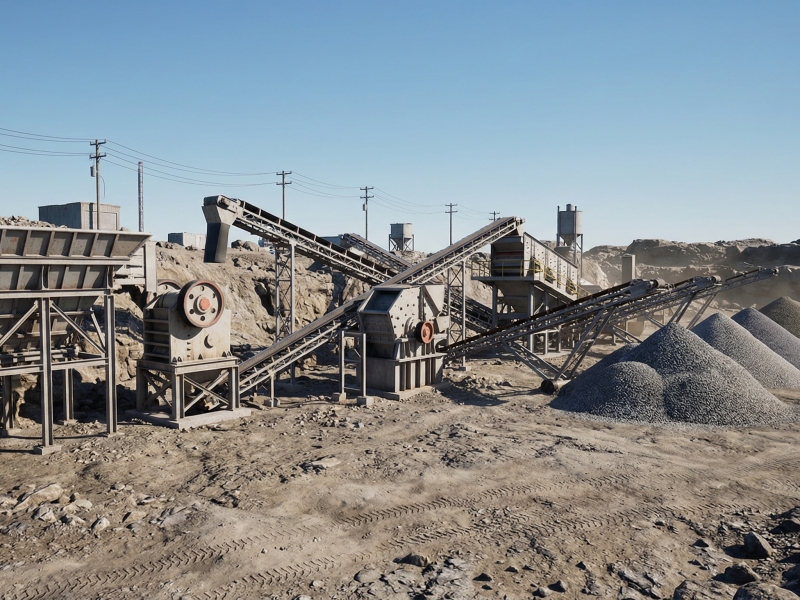

Production Capacity: 100-150 tons per hour.
Core Equipment: Features a ZSW960×3800 vibrating feeder, PE600×900 jaw crusher, CS110 cone crusher, and 4YK18608 vibrating screen.
Optional Equipment: Sand washing machines and PLC control systems are available to improve product purity and automate operation.
Applications: Medium mining projects, highway construction, and building aggregate production.
Configuration: Stationary plant with scrap removal conveyor (B-5) and multi-output finished product conveyors (B-4), suitable for long-term quarry operations.
Optimized crushing chamber and heavy-duty components ensure consistent 100–150 TPH production, even when processing hard rock like granite and basalt.
Key parts (jaw plates, cone liners) are made of high manganese steel alloy, extending service life and reducing maintenance frequency.
The 4YK1860 vibrating screen delivers accurate multi-size classification, producing uniform aggregates that meet international construction and road-building standards.
Equipped with a PLC control system for one-key operation, plus dust removal and noise reduction devices to meet global environmental and safety regulations.

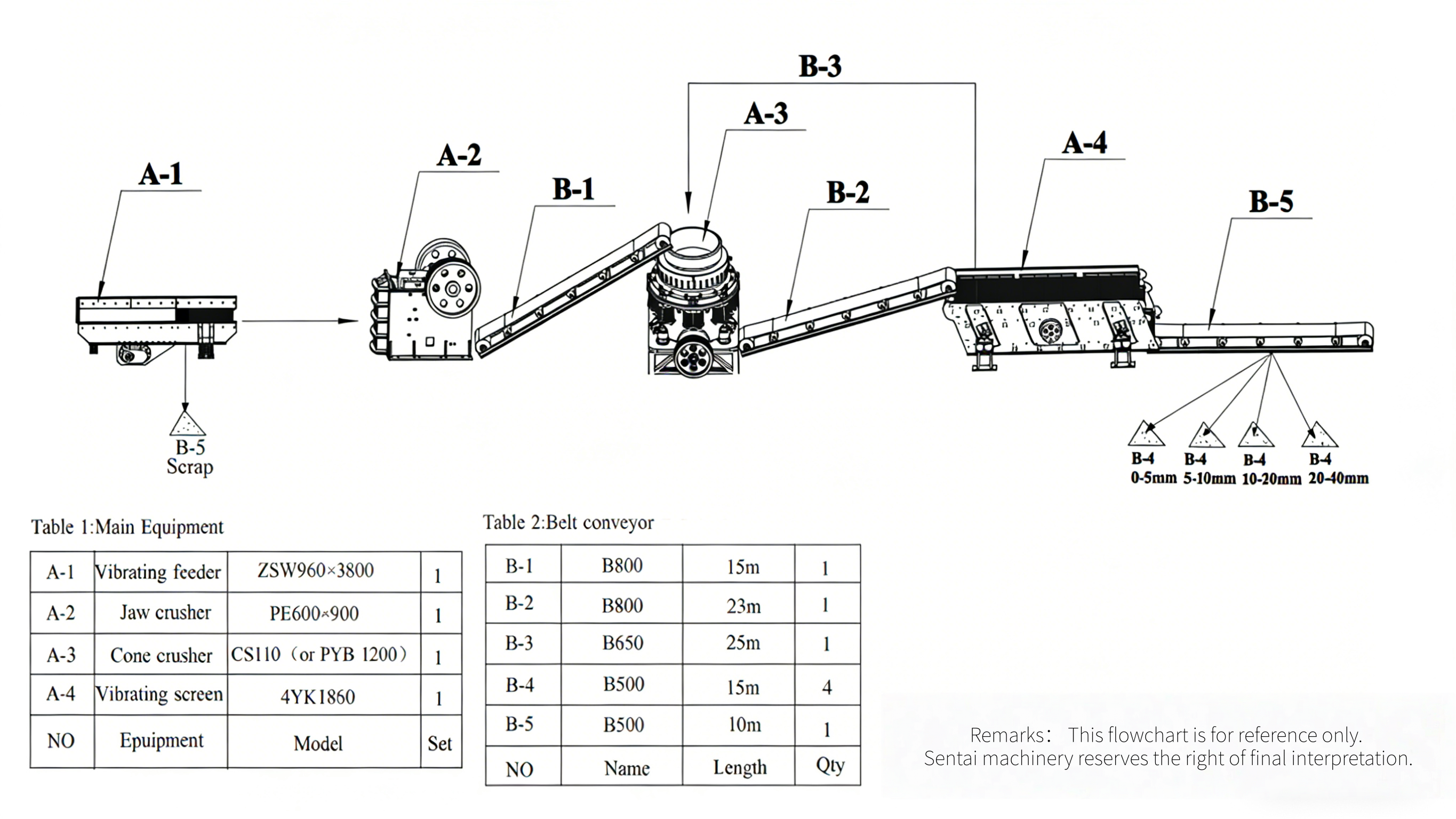

Raw stones (≤600mm) are evenly fed into the jaw crusher via a ZSW960×3800 vibrating feeder, which pre-screens and removes small scrap material to protect downstream equipment.
The PE600×900 jaw crusher performs coarse crushing, reducing large stones to 65–160mm with a high crushing ratio and strong wear resistance.
Crushed materials are conveyed to the CS110 (PYB 1200) cone crusher for medium/fine crushing, further reducing particle size to 0–40mm based on project requirements.
The crushed material is sent to a 4YK1860 vibrating screen, which separates it into four standard grades: 0–5mm, 5–10mm, 10–20mm, and 20–40mm.
Qualified aggregates are conveyed to stockpiles via belt conveyors, while oversize material is recycled back to the cone crusher for reprocessing.
Note: Stcrushers can customize a set of 100-150 tph Stone Crushing Plant according to customer's needs.
