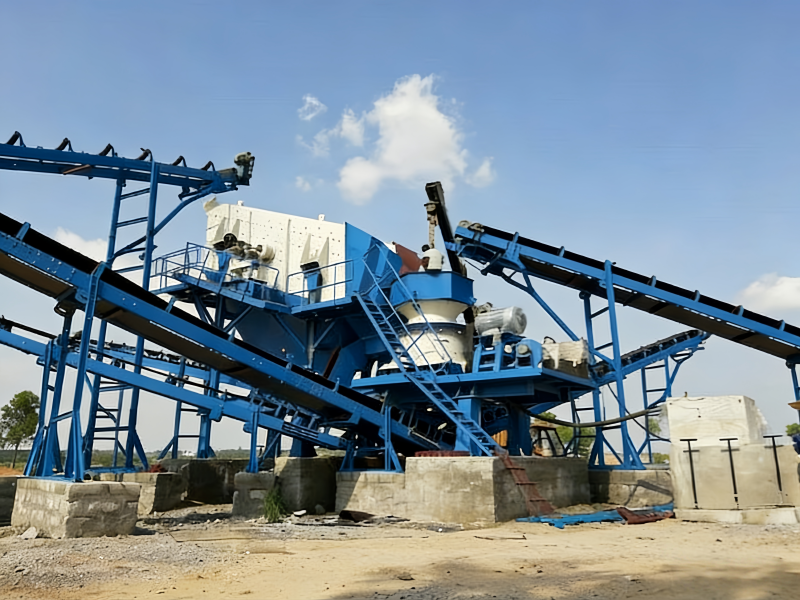

Production Capacity: 180-220 tons per hour.

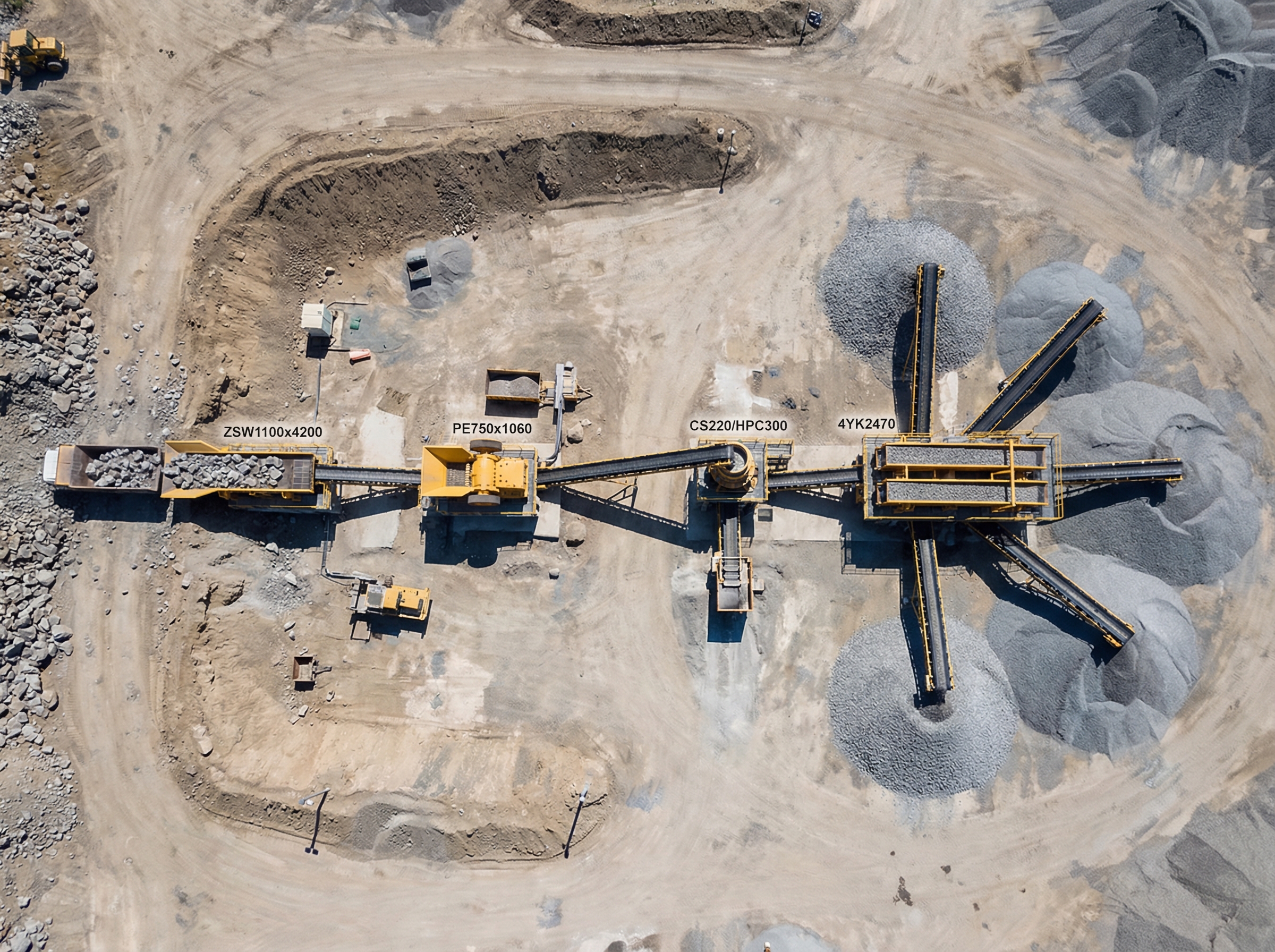

Core Equipment: Includes a ZSW1100×4200 vibrating feeder, PE750×1060 jaw crusher, CS220 (or HPC 300) cone crusher, and 4YK2470 vibrating screen.
Optional Equipment: Dust collectors and PLC control systems are available to reduce emissions and enable automated operation.
Applications: Large-scale quarrying, highway construction, railway engineering, and commercial concrete production.

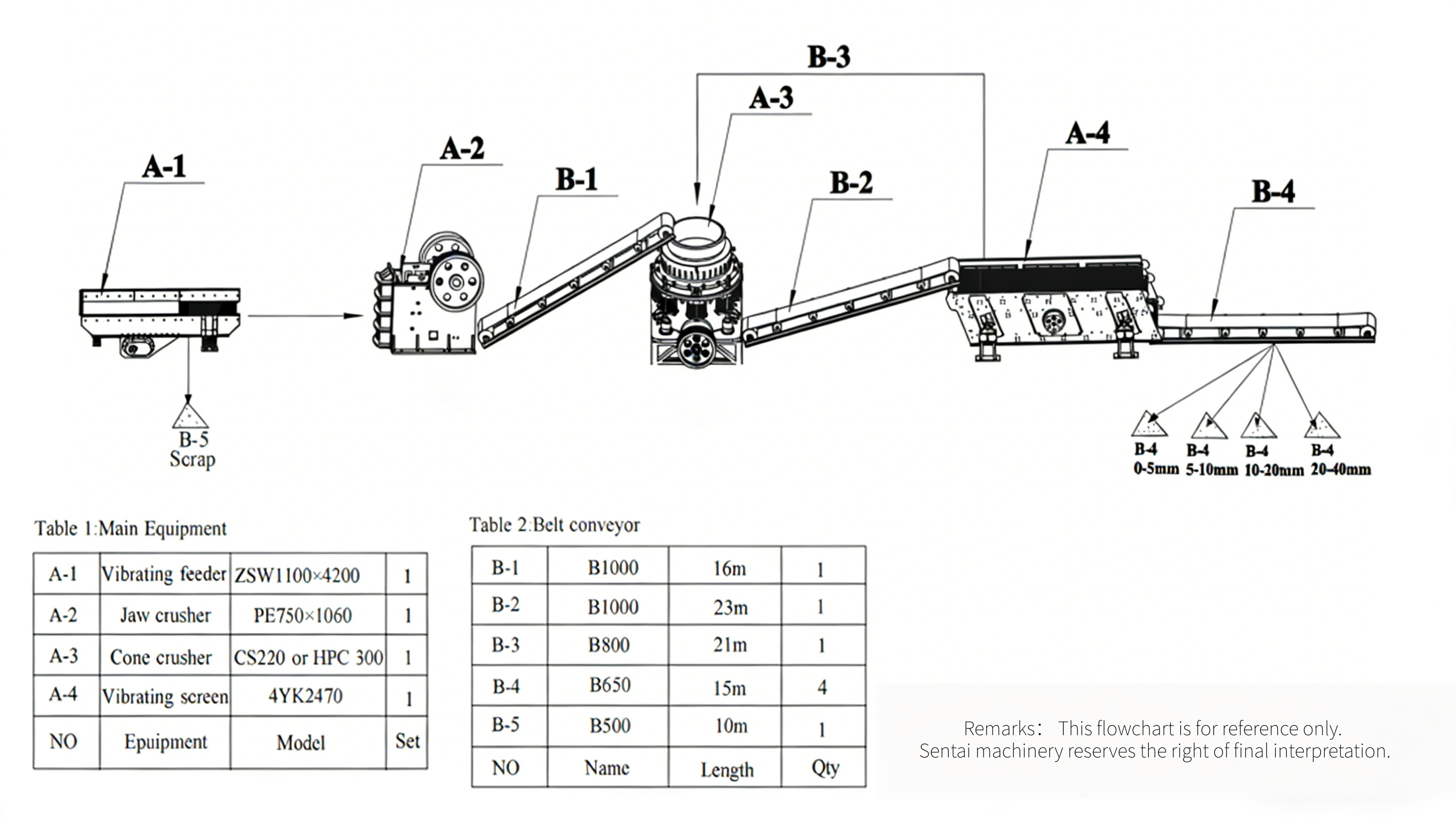

Configuration: Stationary layout with a return conveyor (B-3) to reprocess oversized materials, delivering graded finished aggregates (0-5mm, 5-10mm, 10-20mm, 20-40mm).
Optimized crushing chamber and heavy-duty components ensure consistent 180–220 TPH production, even when processing hard rock like granite and basalt.
Key parts (jaw plates, cone liners) are made of high manganese steel alloy, extending service life and reducing maintenance frequency.

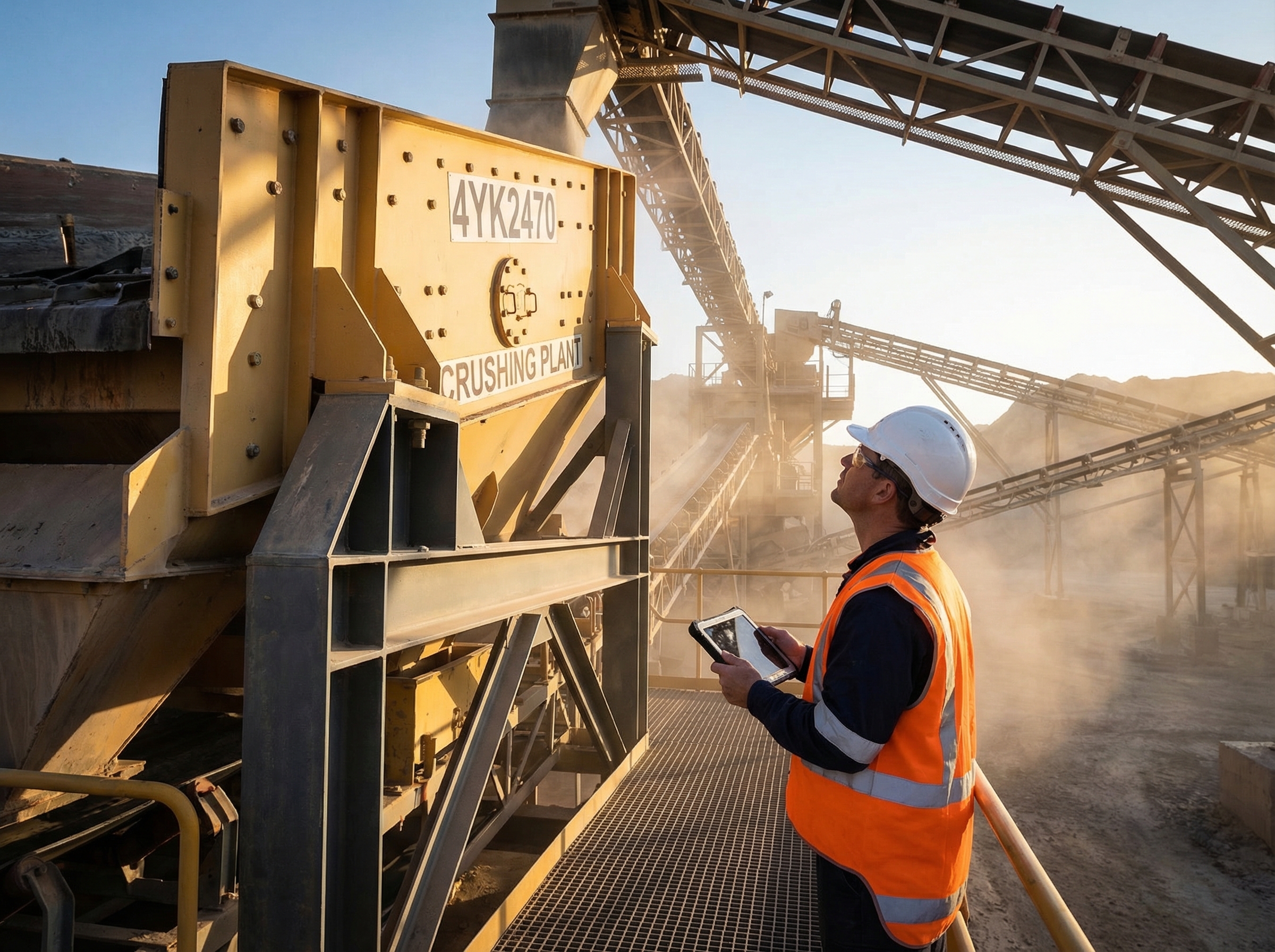

The 4YK2470 vibrating screen delivers accurate multi-size classification, producing uniform aggregates that meet international construction and road-building standards.
Equipped with a PLC control system for one-key operation, plus dust removal and noise reduction devices to meet global environmental and safety regulations.

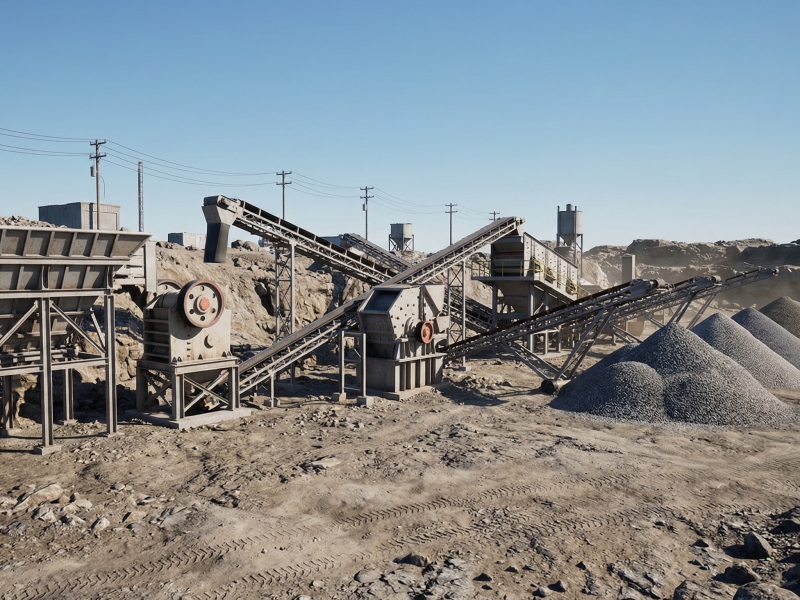

Raw stones (≤750mm) are evenly fed into the jaw crusher via a ZSW1100×4200 vibrating feeder, which pre-screens and removes small scrap material to protect downstream equipment.
The PE750×1060 jaw crusher performs coarse crushing, reducing large stones to 80–200mm with a high crushing ratio and strong wear resistance.

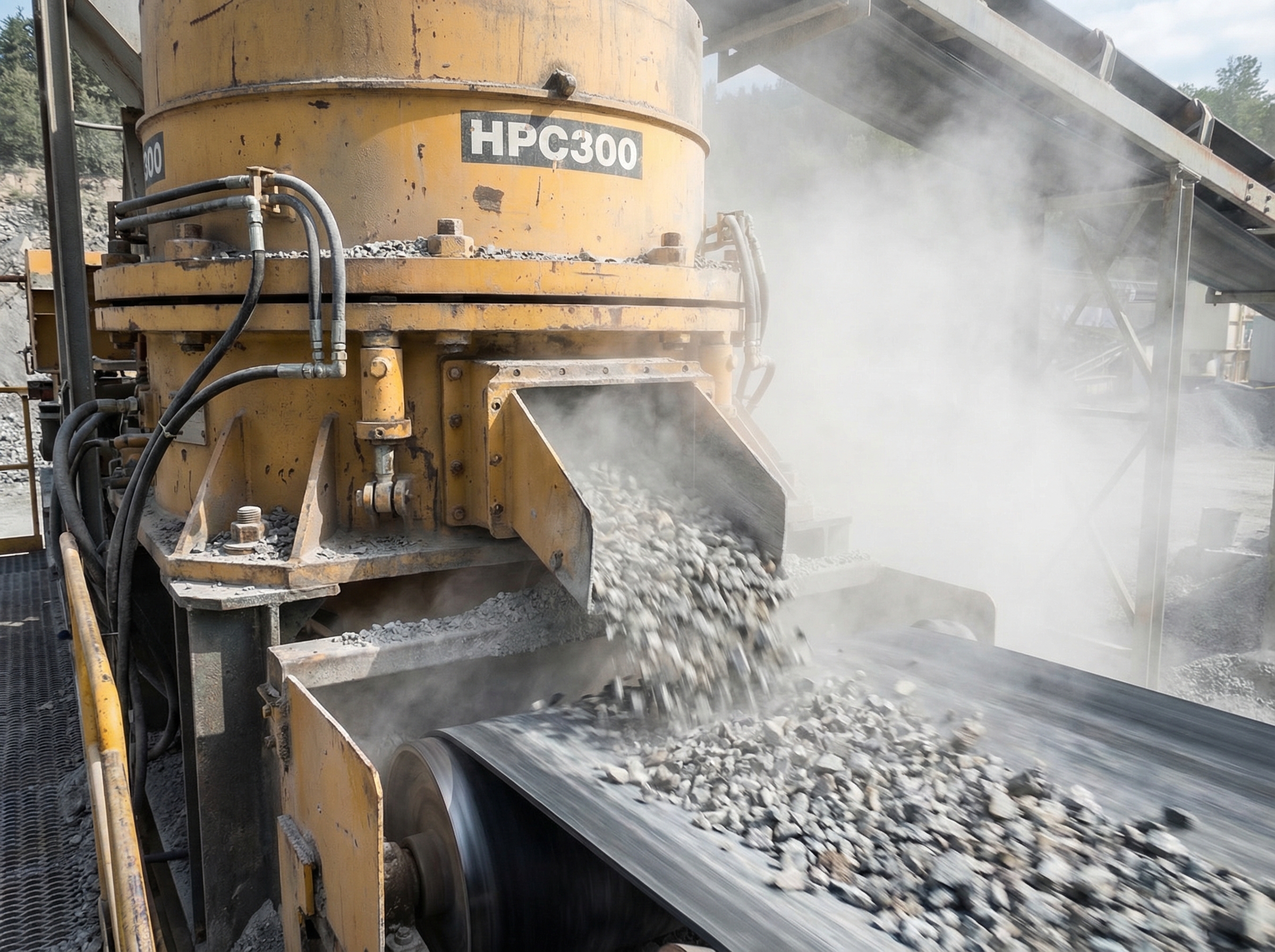

Crushed materials are conveyed to the CS220 (or HPC 300) cone crusher for medium/fine crushing, further reducing particle size to 0–40mm based on project requirements.
The crushed material is sent to a 4YK2470 vibrating screen, which separates it into four standard grades: 0–5mm, 5–10mm, 10–20mm, and 20–40mm.
Qualified aggregates are conveyed to stockpiles via belt conveyors, while oversize material is recycled back to the cone crusher for reprocessing.
Note: Stcrushers can customize a set of 180-220 tph Stone Crushing Plant according to customer's needs.
