The bauxite rotary kiln production line constitutes a complex integrated system encompassing mechanical, thermal, chemical and automation disciplines. Its technical sophistication, operational stability and energy consumption metrics directly impact the profitability and competitiveness of the entire alumina plant.
Sentai Machinery offers a bauxite rotary kiln production line for stable bauxite calcination with flexible fuel options, reliable continuous operation, and dust/emission control designed for project delivery.
| Equipment Type | Option (Example) | Function |
|---|---|---|
| Storage & Feeding | Hopper + Belt Feeder / Vibrating Feeder | Stable raw material feeding |
| Size Control (Optional) | Crusher + Screen | Improve feeding stability |
| Metered Feeding | Sealed Screw Feeder / Lock Hopper | Controlled feed + reduced air leakage |
| Rotary Kiln (Bauxite Calciner) | Sentai Customized | Main calcination unit |
| Burner / Heat System | Fuel-configurable (by project) | Heat supply based on local conditions |
| Cooling System | Rotary Cooler | Cooling and safe discharge |
| Dust Collection | Cyclone + Pulse Bag Filter | Dust capture and emission control |
| ID Fan & Ducting | Sentai Customized | Airflow and negative pressure control |
| Conveying & Storage | Belt Conveyor + Silo/Packing | Product transfer and storage |
| Control System | PLC Control Cabinet | Central monitoring and operation |
Kiln structure and process control support stable temperature profile and residence time for reliable product performance.
Burner/heat system can be configured according to local fuel availability and compliance requirements.
Robust mechanical design and refractory lining options support continuous industrial service.
Sealed feeding and dust collection help reduce dust leakage and support cleaner operation; safety configuration can be applied per project scope.

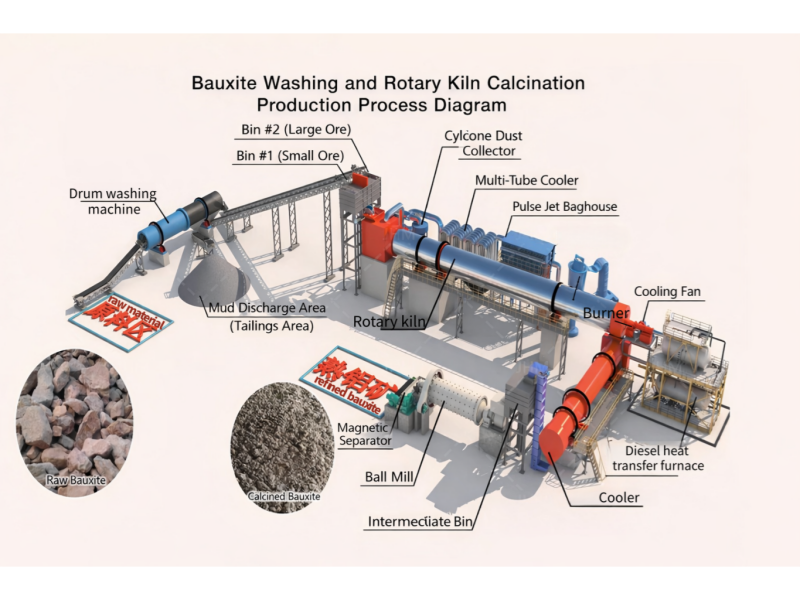

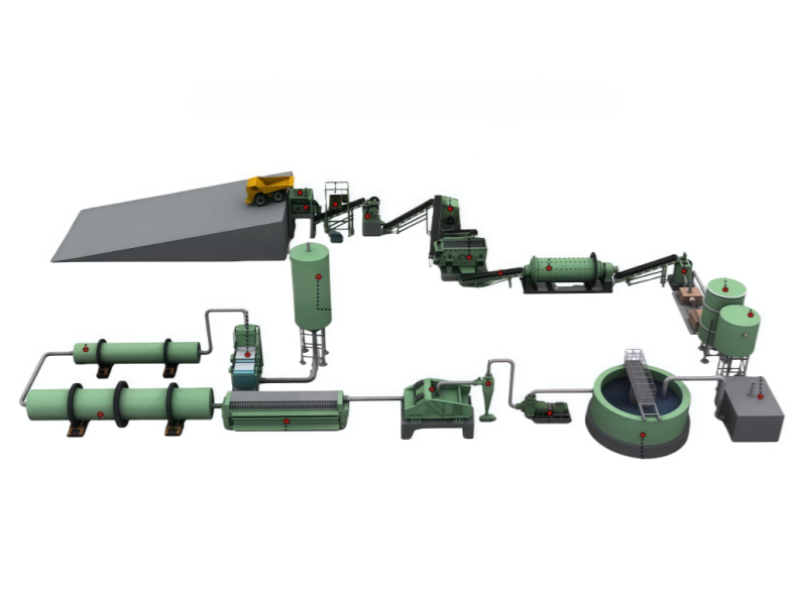

Bauxite is fed through hopper/feeder. If oversized lumps affect stability, crushing/screening can be added.
For higher moisture or efficiency goals, a drying/preheating step can be integrated to stabilize kiln operation.
Controlled feeding supports stable kiln load and reduces air leakage.
Bauxite is calcined under a controlled temperature profile to reach the required phase and performance.
Calcined bauxite is cooled by a rotary cooler or other cooling solution for safer handling.
Cyclone + pulse bag filter (typical) captures dust; additional systems can be included per local standards.
The cooled product is conveyed to storage or packing as required.
Note: Stcrushers can customize a set of Bauxite Rotary Kiln Production Plant according to customer's needs.
