Production capacity: 100-150 t/h
MaxFeeding size: 50-80 mm
Core Equipment: ZSW9638 vibrating feeder, PE600×900 jaw crusher, PYB1200 cone crusher, VSIX-1150 sand making machine, 2YK2475 vibrating screen, XL1150×9M sand washing machine and YTS2252 sand dewatering machine.
Application areas: Construction engineering, road and bridge construction, water conservancy engineering, municipal engineering, mining, and industry.
| Category | Equipment | Model | Quantity | Function |
|---|---|---|---|---|
| Feeding & Primary Crushing | Vibrating Feeder | ZSW9638 | 1 set | Uniformly feeds raw stone and removes impurities |
| Jaw Crusher | PE600×900 | 1 set | Coarse crushing of large raw stone to ~200mm | |
| Secondary Crushing | Cone Crusher | PYB1200 | 1 set | Fine crushing to produce sand-making feed material |
| Sand Making & Shaping | VSI Sand Making Machine | VSIX-1150 | 1 set | Shapes particles into cubical manufactured sand via high-speed impact |
| Screening System | Vibrating Screen | 2YK2475 | 1 set | Screens shaped material to grade sand and recycle oversize particles |
| Washing & Dewatering | Sand Washing Machine | XL1150×9M | 1 set | Washes sand to remove mud and fine impurities |
| Sand Dewatering Machine | YTS2252 | 1 set | Dewaters washed sand to reduce moisture content for immediate use | |
| Conveying System | Belt Conveyors | B650/B800/B1000 | 6 sets | Transports material between all processing stages |
Optimized heavy-duty equipment matching ensures consistent high-capacity production for large-scale sand demand.
VSIX-1150 sand making machine produces well-graded, cubical sand particles ideal for high-strength concrete and road construction.
Sand washing and dewatering system ensures finished sand has mud content <3% and moisture content <6%, meeting strict construction standards.
Closed-circuit design minimizes material loss, maximizing the ratio of finished sand to raw material.
The plant can produce graded aggregates alongside sand, adapting to diverse project needs.
All core equipment features wear-resistant materials and low power consumption design, reducing operational costs.
Modular layout and belt conveyor system simplify operation, with easy access for maintenance and part replacement.

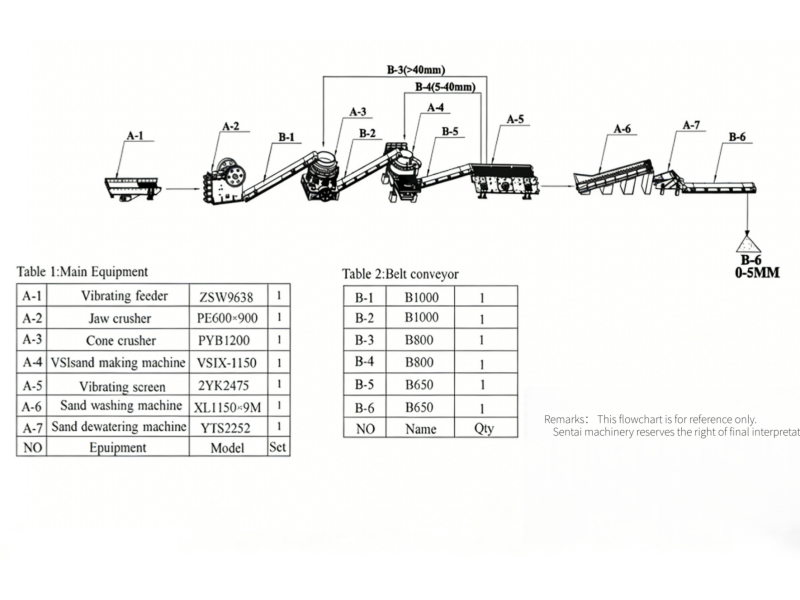

Raw stone is fed into a PE600×900 jaw crusher via a ZSW9638 vibrating feeder for coarse crushing, reducing large rocks to ~200mm.
Coarse crushed material is conveyed to a PYB1200 cone crusher for fine crushing, producing particles suitable for sand making (≤60mm). Oversized material (>40mm) is returned to the cone crusher via conveyor B-3 for reprocessing.
Fine crushed material (5-40mm) is fed into a VSIX-1150 VSI sand making machine for high-speed impact crushing and shaping, creating cubical sand particles.
Shaped material is screened by a 2YK2475 vibrating screen, separating oversize material for re-shaping while directing 0-5mm sand to the washing stage.

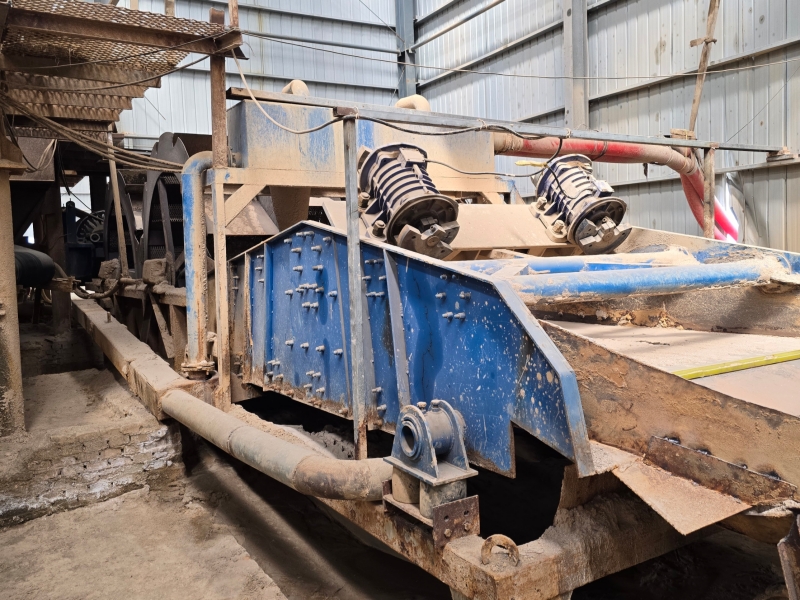

0-5mm sand is washed in an XL1150×9M sand washing machine to remove mud and impurities, then dewatered by a YTS2252 sand dewatering machine to produce clean, low-moisture 0-5mm finished manufactured sand.
Note: Stcrushers can customize a set of 100-150 tph Sand Making Plant according to customer's needs.
