Sentai Machinery's gold flotation production line delivers high-efficiency gold extraction from gold ore, pyrite, and associated minerals. Complete mineral processing system with crushing, grinding, flotation, and dewatering.
And the methods of processing gold ore are flotation, magnetic separation and re-election.
Gold mining equipment mainly includes jaw crusher, ball mill, classifier, flotation machine, dryer, gold shaking table, spiral concentrator and so on.
| Category | Equipment | Model | Quantity | Function |
|---|---|---|---|---|
| Primary Crushing | Jaw Crusher | PE400×600/PE500×750 | 1 set | Coarse crushing of raw gold ore |
| Secondary Crushing | Cone Crusher | PYFB1314/CSB160 | 1 set | Fine crushing of ore |
| Grinding & Classification | Ball Mill | Φ1500×3000/Φ1830×6400 | 1-2 sets | Grinding ore into qualified pulp |
| Spiral Classifier/Hydrocyclone | FX-250/FX-350 | 1 set | Classify pulp fineness | |
| Gold Flotation | Flotation Machine | SF-1.2/ XJK-2.8 | 4-8 sets | Separation of gold minerals from pulp |
| Dewatering | Thickener | NBS-15/NBS-20 | 1 set | Concentrate dewatering |
| Filter Press | MY250/ MY320 | 1 set | Filter press for final dewatering | |
| Conveying & Auxiliary | Belt Conveyor | B500/B650 | Customized | Material transportation between processes |
| Control Cabinet | PLC Control System | 1 set | Centralized control of the entire line |
Adopts optimized flotation circuit design and high-efficiency flotation machines, with gold recovery rate up to 90%-95% for most types of gold ore.
Configurable according to ore properties, production capacity (5-500 tph), and site conditions, suitable for various gold ore types such as oxide gold ore and sulfide gold ore.
High-efficiency ball mills and energy-saving motors reduce power consumption per ton of ore, and reasonable equipment matching improves overall processing efficiency.
Advanced control system and wear-resistant components ensure long-term stable operation of the production line, with low failure rate and easy maintenance.
1.Raw gold ore is fed into the jaw crusher for coarse crushing, reducing the ore size to below 50mm for subsequent processing.
The coarsely crushed ore is further processed by a cone crusher and screened to ensure the feed size meets the requirements of the grinding process (generally below 20mm).

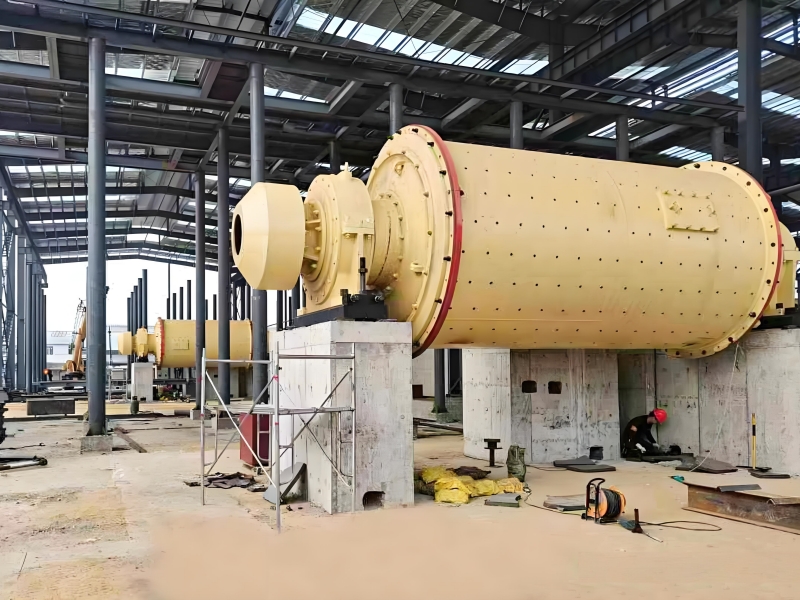

3.The qualified ore is sent to a ball mill for grinding, combined with a spiral classifier or hydrocyclone for classification. The pulp with qualified fineness (generally -200 mesh accounting for 60%-80%) is sent to the flotation process.
The qualified pulp is mixed with flotation reagents (collector, frother, regulator) and fed into flotation machines. Gold minerals adhere to air bubbles and form froth, which is scraped out as gold concentrate.
5.The gold concentrate is processed by a thickener and filter press for dewatering, and finally dried to obtain the finished gold concentrate product.
Note: Stcrushers can customize a set of Gold Flotation Production Plant according to customer's needs.
