Production capacity: 50-100 t/h
Max feeding size: ≤500
mmCore Equipment: ZSW850×3000 vibrating feeder, PE500×750 jaw crusher, CS75 cone crusher, 3YK1548 vibrating screen, VSI7611 sand making machine, 3YK1860 vibrating screen, XSD2610 sand washing machine and HX500 fine sand recycling machine.
Application areas: Construction engineering, road and bridge construction, concrete mixing plants, infrastructure projects, mining and quarrying operations.
| Category | Equipment | Model | Quantity | Function |
|---|---|---|---|---|
| Main Equipment | Vibrating Feeder | ZSW850×3000 | 1 set | Uniform feeding of raw materials |
| Jaw Crusher | PE500×750 | 1 set | Primary coarse crushing | |
| Cone Crusher | CS75 | 1 set | Secondary medium crushing | |
| Vibrating Screen | 3YK1548 | 1 set | Pre-screening of crushed materials | |
| VSI Sand Making Machine | VSI7611 | 1 set | High-speed impact sand making | |
| Vibrating Screen | 3YK1860 | 1 set | Screening of sand-making products | |
| Sand Washing Machine | XSD2610 | 1 set | Washing and cleaning of manufactured sand | |
| Fine Sand Recycling Machine | HX500 | 1 set | Recovering fine sand from washing wastewater | |
| Belt Conveyors | Belt Conveyor | B800 | 2 sets | Conveying between crushers and screens |
| Belt Conveyor | B650 | 6 sets | Conveying between sand making, screening, washing and recycling | |
| Belt Conveyor | B500 | 2 sets | Conveying finished products to stockpiles | |
| Auxiliary System | Control Cabinet | PLC Control System | 1 set | Centralized control of the entire line |
| Dust Removal System | Pulse Bag Filter | 1 set | Reducing dust emission during operation |
The VSI7611 sand making machine produces cubic-shaped manufactured sand with excellent gradation, meeting high standards for concrete and construction applications.
Closed-circuit crushing and fine sand recycling systems minimize material loss, improving overall resource utilization by up to 95%.
The XSD2610 sand washing machine and HX500 fine sand recycler ensure clean, high-quality sand while reducing water consumption and environmental impact.
Equipped with a PLC control system for one-key operation and overload protection, ensuring long-term stable performance and minimal maintenance downtime.

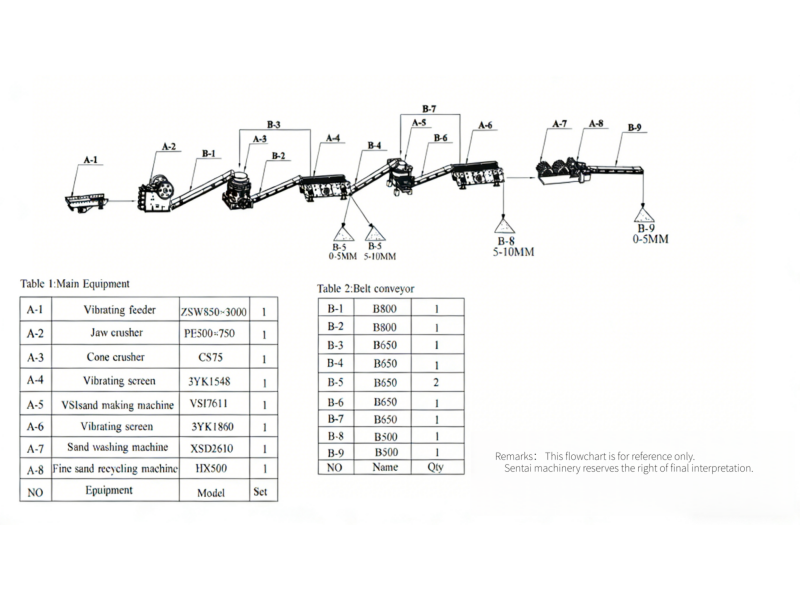

Raw stones (≤500mm) are evenly fed into the jaw crusher via a ZSW850×3000 vibrating feeder, ensuring stable feeding and protecting downstream equipment.
The PE500×750 jaw crusher performs coarse crushing, reducing large stones to 50–100mm with a high crushing ratio and strong wear resistance.
Crushed materials are conveyed to the CS75 cone crusher for medium crushing, further reducing particle size to 0–30mm.
The crushed material is sent to a 3YK1548 vibrating screen, which separates it into 0–5mm and 5–10mm aggregates, while oversize material is returned to the cone crusher for reprocessing.
Qualified 5–30mm materials are fed into the VSI7611 VSI sand making machine, which uses high-speed impact to produce high-quality manufactured sand.
The sand-making product is sent to a 3YK1860 vibrating screen, separating it into 5–10mm aggregates and 0–10mm sand.
The 0–10mm sand is fed into the XSD2610 sand washing machine to remove mud and impurities, improving the sand’s cleanliness and quality.
Wastewater from the sand washing machine is processed by the HX500 fine sand recycling machine, recovering fine sand particles and reducing material loss.
Finished products (0–5mm washed sand, 5–10mm aggregates) are conveyed to stockpiles via belt conveyors, completing the entire sand making process.
Note: Stcrushers can customize a set of 50-100 tph Sand Making Plant according to customer's needs.
